Images are representations only.

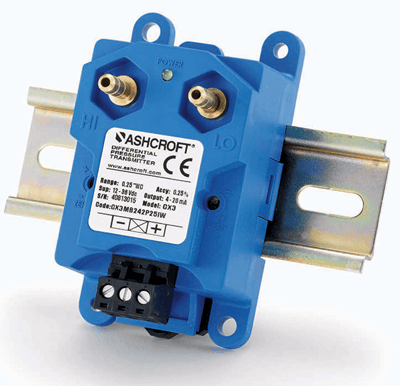

MODEL CXLDP

Series: Model CXLdp High Accuracy Differential Pressure Transmitter Brand: Ashcroft Inc
Price
Request a Quote
Stock
Out of Stock
Request Information

Free Shipping

Description
  • Accuracy / Temperature Coefficient - ± 0.25% / ± 0.03%/°F
  • Connection - 1/4" Male Barbed
  • Output Signal - 4-20 mA
  • Pressure Type - Differential/Gauge
  • Pressure Range - Inches WC: 0.10
  • Conduit - Without Conduit
  • Accuracy / Temperature Coefficient - ± 0.25% / ± 0.03%/°F
  • Connection - 1/4" Male Barbed
  • Output Signal - 4-20 mA
  • Pressure Type - Differential/Gauge
  • Pressure Range - Inches WC: 0.10
  • Conduit - Without Conduit
Close

Specifications

Brand

Span & Zero Effect

  • Externally Accessible: ± 5 % of Full Scale

Response Time

  • 250 milliseconds

Environmental Protection

  • IP10
  • NEMA 1

Burst Pressure

  • Overpressure Limits psid: 25 (kPa: 172.4, bar: 1.724)

Stability

  • Maximum

Accuracy

  • ± 0.25 % of Span

Supply Voltage

  • 11.5-36 Vdc

Output

  • Voltage: 0-10 Vdc, 3-Wire
  • Voltage: 0-5 Vdc, 3-Wire
  • Voltage: 4-20 mA, 2-Wire

Tube Connection

  • 1/4” Barbed Tube Connection

Mounting

  • 1/2” Plenum Mounting Bracket
  • Panel Mount
  • Threaded Fastener & 35 mm DIN Rail Mounting

Proof Pressure

  • Overpressure Limits psid: 15 (kPa: 103.4, bar: 1.034)

Current

  • Supply: 4.5-21.5 mA

Temperature Coefficient

  • Zero & Span: ± 0.03 % of Span/°F

Humidity

  • 10 to 95 % Relative Humidity, Non-Condensing

Pressure Type

  • Compound Pressure
  • Differential
  • Gauge

Enclosure, Body Material

  • Fire-Retardant ABS (Meets UL 94-5 VA)

Line Pressure

  • Maximum

Diaphragm Material

  • Silicone

NACE & NIST

  • NIST

Compensated Temperature

  • 1.6° to 54.4° C (35° to 130° F)

NPT Connection

  • 1/8” NPT Female Brass

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Media

  • Clean, Dry & Non-Corrosive Gas

Mounting Position Effect

  • ± 1 % / g (Lowest Range)

Pressure Range

  • Inches WC: -15 to 25

Approvals & Certifications

  • CE
  • EMC Directive 2004/108/EC
  • IEC/EN 61326-1: Edition 1.0 Industrial, IEC/EN 61326-2-3: Edition 1.0 Annex BB Industrial
  • RoHS

Indication

  • LED Visual Indicator

Electrical Connectors

  • 12-26 Gauge Wire
  • Euro Style Pluggable Terminal Block

Storage Temperature

  • -40° to 82° C (-40° to 180° F)
Close
