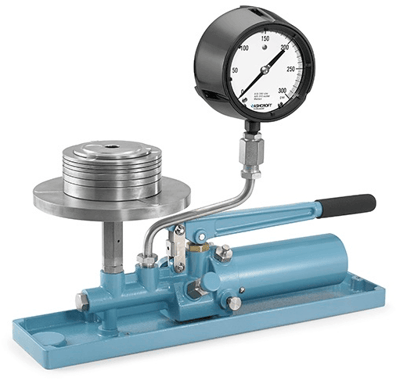

TYPE 1305D

Series: 1305D DeadWeight Tester Brand: Ashcroft Inc.
Price
Request a Quote
Stock
Out of Stock
Request Information

Free Shipping

  • Pressure Range - psi: 15 to 1,000
  • Pressure Range - psi: 15 to 1,000
Close

Specifications

Brand

Accuracy

  • ± 0.1 % of Reading

Applications

  • Calibration Labs
  • Test & Measurement

Approvals & Certifications

  • ISO 9001

Enclosure, Body Material

  • Pump: Aluminum Alloy

Materials of Construction

  • Cylinder: 416 Stainless Steel
  • Cylinder: 440C Stainless Steel
  • Weight: Non-Magnetic Die Cast Zinc Alloy, ASTM AC41A

Media

  • Phosphate or Glycolic-based Hydraulic Fluids - 1305DH
  • SAE 20 Automotive or Machine Oil - 1305D

NACE & NIST

  • NIST

Operating Pressure

  • psi: 15 to 10,000 (kPa: 103.4 to 68,950, bar: 1 to 689.5) - Max.

Seat / Seal Material

  • O-Ring Seal: Buna-N - 1305D
  • O-Ring Seal: Ethylenepropylene - 1305DH
