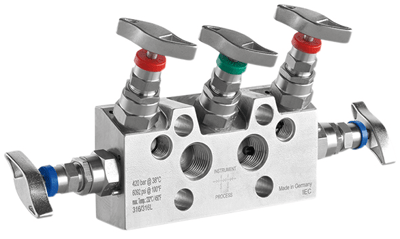

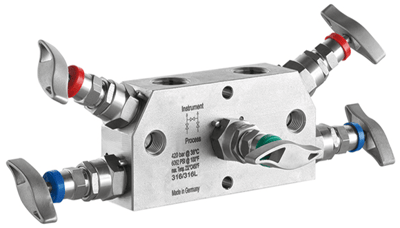

V02 Series Direct & Remote Mount 5-Valve Manifold

Brand: Ashcroft Inc.

Free Shipping on Orders Over $500.00 CAD

The Ashcroft V02 direct & remote mount 5-valve manifolds are designed to connect to the instrument to isolate, bleed and equalize pressure in the instrument during process shut downs and maintenance.
Features
  • 5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance
  • 316L stainless steel construction
  • Support mounting brackets available
  • PTFE Packing (other materials available upon request)
  • Color-coded dust caps prevent dust ingress and identifies handle function
  • Stem with cold rolled surface, back seat and non-rotating needle tip
  • Supplied with wetted parts according to NACE MR0175/MR0103
  • Material Traceability Reports available per EN 10204 3.1
show more
The Ashcroft V02 direct & remote mount 5-valve manifolds are designed to connect to the instrument to isolate, bleed and equalize pressure in the instrument during process shut downs and maintenance.
Features
  • 5-valve manifolds isolate and bleed the process for each port as well as equalize pressure for instrument maintenance
  • 316L stainless steel construction
  • Support mounting brackets available
  • PTFE Packing (other materials available upon request)
  • Color-coded dust caps prevent dust ingress and identifies handle function
  • Stem with cold rolled surface, back seat and non-rotating needle tip
  • Supplied with wetted parts according to NACE MR0175/MR0103
  • Material Traceability Reports available per EN 10204 3.1

Specifications

Applications

  • Chemical Industry
  • Oil & Gas Applications
  • Power Plants
  • Seawater Desalination Plants
  • Steel Mills
  • Waste Incineration Plants

Approvals & Certifications

  • Hydrostatic Pressure Test
  • Material Test Report

Bonnet Material

  • 316 Stainless Steel

Enclosure, Body Material

  • 316L Stainless Steel

Gland Nut Material

  • 304 Stainless Steel

Handle Assembly Material

  • T-Handle: Stainless Steel

Instrument Connection

  • Remote Mount: 1/2" NPT Female

Mounting

  • Direct Mounting: IEC, Typical A
  • Mounting Bracket
  • Remote Mounting: 1/2" NPT Female

NACE & NIST

  • NACE MR-0175, MR0103

Name Plate, Tag Material

  • Stainless Steel

NPT Inlet

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Packing Material

  • PTFE up to 200° C (392° F)

Plug Material

  • Screw Plug: 316L Stainless Steel

Pressure Rating

  • PTFE: Maximum

Special Cleaning & Packaging

  • Cleaned for Oxygen Service

Stem Material

  • Valve Stem: 316L Stainless Steel

Temperature Range

  • PTFE: 200° C (392° F) - Maximum

Wetted Materials

  • Needle Tip: 316Ti Stainless Steel
