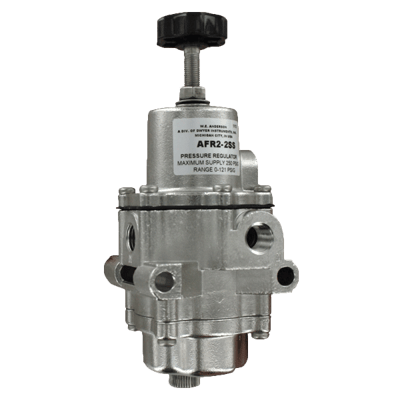

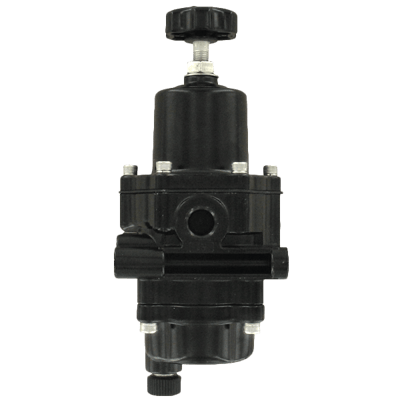

Series AFR2 Instrument Air Filter Regulator

Brand: Dwyer Instruments, LLC
Request Information

Free Shipping on Orders Over $370.60 USD

Series AFR2 Air Filter Regulator provides clean air pressure to pneumatic controllers, valve positioners, air cylinders and other equipment.

Self-relieving regulator is equipped with a 40 micron filter housed in a dripwell with gauge port.
Features
  • Compact size
  • Self-relieving regulator
  • 5 micron filter
show more
Series AFR2 Air Filter Regulator provides clean air pressure to pneumatic controllers, valve positioners, air cylinders and other equipment.

Self-relieving regulator is equipped with a 40 micron filter housed in a dripwell with gauge port.
Features
  • Compact size
  • Self-relieving regulator
  • 5 micron filter
Close
Close

Specifications

Brand

Diaphragm Material

  • Nitrile Elastomer - Wetted Materials

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Filter

  • 5 microns

Media

  • Air

NPT Connection

  • 1/4” NPT Female

Pressure Range

  • bar: 0 to 8
  • kPa: 0 to 834
  • psi: 0 to 121

Relief

  • Self-Relieving

Seat / Seal Material

  • Nitrile Elastomer (Valve Seat Plug) - Wetted Materials

Supply Pressure - Maximum

  • bar: 17.2
  • kPa: 1,720
  • psig: 250

Temperature Range

  • -20° to 70° C (-4° to 158° C)

Wetted Materials

  • Polyethylene - Filter
Close

Typical Applications

  • Air filter regulator provides clean air pressure to pneumatic controllers, valve positioners, air cylinders and other equipment
