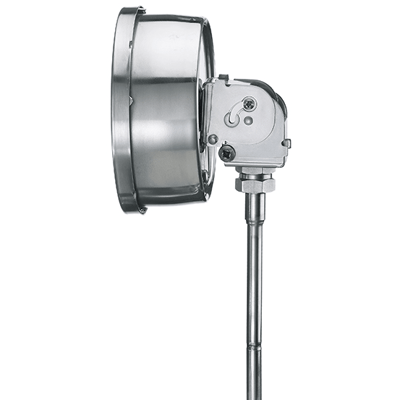

Model C-600B Duratemp Thermometer

Brand: Ashcroft Inc

Free Shipping on Orders Over $369.50 USD

The Ashcroft C-600B Duratemp Thermometer is a direct-mount instrument providing performance while being highly resistant to shock and vibration.

Its high temperature range capability exceeds that of most bimetallic thermometers, making it ideal for use on many applications.

Usually used with a thermowell, the Duratemp is ideal for applications with vibration and very high or low temperature.
Features
  • Exclusive movementless design resists shock and vibration – no gears to wear out – or misalign resulting in increased instrument life
  • Gas-operated molecular sieve
  • Mercury free
  • 1% full-span accuracy
  • Every angle Duratemp thermometer can be rotated 360° and can be angled 180°, ensuring readability in any installation
  • Maxivision dial
show more
The Ashcroft C-600B Duratemp Thermometer is a direct-mount instrument providing performance while being highly resistant to shock and vibration.

Its high temperature range capability exceeds that of most bimetallic thermometers, making it ideal for use on many applications.

Usually used with a thermowell, the Duratemp is ideal for applications with vibration and very high or low temperature.
Features
  • Exclusive movementless design resists shock and vibration – no gears to wear out – or misalign resulting in increased instrument life
  • Gas-operated molecular sieve
  • Mercury free
  • 1% full-span accuracy
  • Every angle Duratemp thermometer can be rotated 360° and can be angled 180°, ensuring readability in any installation
  • Maxivision dial
Close

Displaying price & availability for Virginia, United States in USD Change location or currency.

MODEL C-600B
  • Stem Length - Semirigid Stainless Steel 6"
  • Range - -320° to 200° F
  • Marking - No Dial Marking
  • Set Hand - Without Adjustable Red Hand Set
  • Pointer - Without Adjustable Pointer
  • Window Material - Standard Window
  • Tag - Standard Tag
Out of Stock
Close
Close

Specifications

Brand

Approvals & Certifications

  • ISO 9001

Insertion 'U' Length

  • 4.5 to 10.5” (114.3 to 266.7 mm)

Mounting

  • Direct Mounting, Fixed 1/2 Union Connection

Lens

  • Window: Glass Lens
  • Window: Plastic Lens
  • Window: Shatterproof Glass

Enclosure, Body Material

  • Stainless Steel

Ambient Temperature Range

  • 71° C (160° F)

NPT Connection

  • 1/2” NPT Female

Rotation

  • 360°

Accuracy

  • ± 1% of Span

Temperature Range

  • -200° to 650° C (-320° to 1,200° F)

Name Plate, Tag Material

  • Paper
  • Stainless Steel

Size

  • Dial: 4.5” (114 mm) - Max.

Stem Length

  • 6 to 36” (152.4 to 914.4 mm)

Stem Material

  • 316 Stainless Steel
Close

Typical Applications

  • Biotechnology
  • Chemical & Petrochemical
  • Equipment Skids
  • Food & Beverage
  • General Industrial Applications
  • HVAC Equipment
  • Offshore Oil Rigs
  • Pharmaceutical
  • Pulp & Paper
  • Refineries
  • Water & Wastewater Pressure Control
