AT30 Skin Type Thermocouple

Brand: Ashcroft Inc
Request Information

Free Shipping on Orders Over $370.60 USD

The Ashcroft AT30 skin type thermocouple assembly provides accurate surface and wall temperature measurements for applications that are located in hazardous environments.

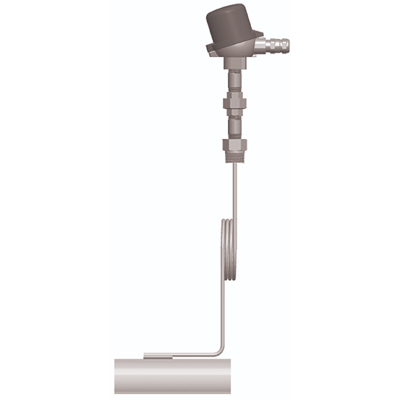

Each thermocouple assembly consists of a spring loaded thermocouple, magnesium oxide, MgO, insulated insert, a connection head, lag extension, expansion loop, and weldable sensor.

The assembly may also include an optional terminal block for wiring and/or transmitters.

Thermocouple assemblies are manufactured to either to IEC 60584-2 or ANSI MC 96.1.
Features
  • Weldable sensor head
  • Available with and without transmitters
  • Integrated expansion loop allows for expansion and contraction within temperature changes
show more
The Ashcroft AT30 skin type thermocouple assembly provides accurate surface and wall temperature measurements for applications that are located in hazardous environments.

Each thermocouple assembly consists of a spring loaded thermocouple, magnesium oxide, MgO, insulated insert, a connection head, lag extension, expansion loop, and weldable sensor.

The assembly may also include an optional terminal block for wiring and/or transmitters.

Thermocouple assemblies are manufactured to either to IEC 60584-2 or ANSI MC 96.1.
Features
  • Weldable sensor head
  • Available with and without transmitters
  • Integrated expansion loop allows for expansion and contraction within temperature changes
Close
Close

Specifications

Brand

Stem Length

  • 2 to 3,937” (0.05 to 100 metres)

Cable Entry

  • With Cable Gland: M20 x 1.5
  • With Cable Gland: PG16
  • Without Cable Gland, with Ex d Cable Gland for Non-Shielded Cable or Shielded Cable: 1/2” NPT
  • Without Cable Gland: 3/4” NPT

Environmental Protection

  • IP66
  • IP67
  • IP68

Electrical Connectors

  • Ceramic Terminal Block

Diameter

  • Knife Edge: 2 to 10” (0.05 to 0.254 metres)
  • Stem: 0.23” (6 mm)
  • Stem: 0.314” (8 mm)
  • Stem: 0.375” (9.5 mm)

Enclosure, Body Material

  • Head: 316 Stainless Steel
  • Head: Aluminum Alloy

Sensor, Probe Type

  • J Thermocouple, -40° to 750° C (-40° to 1,382° F)
  • K Thermocouple -200° to 1,100° C (-328° to 2,012° F)

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150# ANSI
  • 1” (DN 25) - 300# ANSI
  • 1” (DN 25) - 600# ANSI

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150# ANSI
  • 1-1/2” (DN 40) - 300# ANSI
  • 1-1/2” (DN 40) - 600# ANSI

Mounting

  • Head Mount
  • Head: 1/2” NPT Female
  • Head: 3/4” NPT Female
  • Sensor

NPT Connection

  • 1-1/2” NPT Male

Stem Material

  • 316 Stainless Steel
  • AISI 466 Stainless Steel
  • Inconel 600

Sensor, Probe Connection

  • 2-Wire

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI
  • 2” (DN 50) - 600# ANSI

Name Plate, Tag Material

  • Metal

Approvals & Certifications

  • Calibration
  • ATEX: Ex d IIC T6 Gb (EN/IEC 60079-1), Ex ia IIC T6 Ga (EN/IEC 60079-11)
  • IEC Ex: Ex d IIC T6 Ga (EN/IEC 60079-1), Ex ia IIC T6 Ga (EN/IEC 60079-11), 60584-2

Accuracy

  • Class 1, Typical J & K: ± 1.5° C (± 2.7° F) or Absolute ± 0.0040° C (± 0.0072° F)
  • Class 2 Typical J & K: ± 2.5° C (± 4.5° F) or Absolute ± 0.0075° C (0.0135° F)
  • Class 3 Typical K: ± 2.5° C (± 4.5° F) or Absolute ± 0.0040° C (0.0072° F)
  • Standard Typical J & K: ± 2.2° C (± 3.96° F) or Absolute 0.0075° C (0.0135° F)
  • Typical J & K: ± 1.1° C (± 1.98° F) or Absolute 0.0040° C (0.0072° F)

Length

  • Length to Expansion Loop: 7.9 to 1,771” (0.2 to 45 metres)
  • Length to Weld Pad: 2 to 393” (0.05 to 10 metres)
Close

Typical Applications

  • Chemical & Petrochemical
  • HVAC/R
  • Industrial Equipment Manufacture
  • Industrial Ovens
  • Oil & Gas Applications
  • Power Generation Equipment
  • Reactors
  • Storage Tanks
  • Towers
